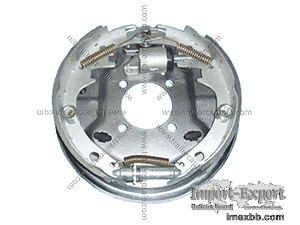

10" x 2 1/4" Trailer Hydraulic Uni-Servo Brake Assembly - Dacromet / Galvan

√

Trailer Brake Drum Kit

√

10 x 2 1/4 inch Drum

√

Galvanized Trailer Brakes

√

3500 lbs,

√

10" Hydraulic Brakes

√

Uni-Servo

√
< , br>Boat Trailer Brakes

√

Dacromet Hydraulic Drum Brakes



This 10" hydraulic uni-servo brake contains one set of riveted dacromet
brake shoes, dacromet backing plate, stainless steel springs and an
aluminum wheel cylinder. This 3.5k trailer brake assembly is built to the
highest standards of the RV industry and will last a long time. Our 10 inch
trailer brake has 4 holes with most major brands of axles, without
modifying the axle or mounting flange. Hot dip galvanized is available.

Features

l Using with a surge-type trailer brake actuator.

l Dacromet / Galvanized coated offers the best value of protection for
salt water applications.

l Fine-tooth brake adjustment gears allow for a more precise setting

l Periodic manual adjustment required.

l This brakes exchange with most quality hydraulic brakes, such as Dexter,
Demco, Hayes, Titian, Atwood etc.

Specifications

Ø Dimension: 10 inch x 2 1/4 inch

Ø Axle Capability: 3500 lbs Axle (13”, 14”, 15” Wheel)

Ø Mounting Flange Bolt Pattern: 4 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

² 10” x 2 1/4" Riveted Uni-Servo Brake Shoe Kit x 1

² Dacromet / Galvanized Back Plate x 1

² Single-Servo Aluminum Wheel Cylinder x 1

² Stainless Steel Springs x 2

Minimum Order: 300 pieces
