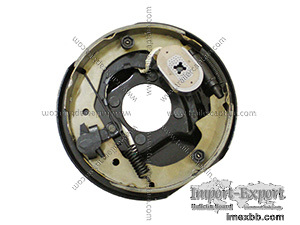

10" x 2 1/4" Trailer Electric Brake Assembly with Parking

√

With Partking

√

Manual Adjust

√

Trailer Brake Axle

√

trailer brake assembly

√

10 x 2.25 inch drum

√

electric brake trailer axle

√

trailer brake parts

√

4 lug trailer axle



10 inch electric trailer brake assemblies has the completely same function
as RVH, but with a very different design. 10’’ x 2¼’’ electric brake with
parking feature is very hot in America. It is designed to use 10" brake
drums. They offer more user control than common electric brakes. With the
brake cable, the brake assembly with parking brake can work in a much safer
situation.

Features

l electric trailer brakes with parking brake are much more reliable and
easy to control.

l No need actuator or hydraulic lines.

l 10" trailer backing plate is E-coated to resist corrosion.

l Periodic manual adjustment required.

l Brake mounting bolts are included.

l Manual parking brake lever included

l Exchange with most trailer axle 3500 pounds, including Dexter.

Specifications

Ø Dimension: 10 inch x 2¼ inch

Ø Axle Capability: 3500 lbs Axle

Ø Mounting Flange Bolt Pattern: 4 bolts

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side /
RH

Product Composition

Ø 10” x 2 1/4" Brake Shoe Set x 1

Ø E-coat Backing Plate x 1

Ø Green Wire Magnet x 1

Ø Magnet Lever x 1

Ø Springs x 2

Ø Adjuster x 1

Minimum Order: 300 pieces
