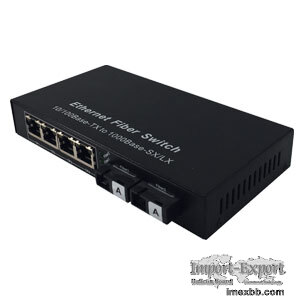

10/100/1000Mbps Unmanaged PoE switch 2G4FEP

Features
Support the switch between 10/100Base-TX and 1000Base-SX/LX

2*1.25Gbps full-duplex fiber ports and 4*100M Ethernet ports with auto-
negotiation function

Support 100M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation
function

Each port has the complete LED Indicator light

Support single mode single fiber,single mode dual fiber,multi-mode dual fiber
and SFP slot

Support IEEE802.1d Spanning Tree

Support high performance QoS function on each port

Support broadcast storm control

Support 48-56V voltage input

Support 8K MAC table

Support IEEE802.3x flow control and back pressure control

Require no configuration and will instantly operate as soon as you power it up

Small volume,light weight

Low power consumption chip with heat sink built in to ensure longtime
efficient operation

Support POE power up to 30W for each port,support IEEE802.3af,IEEE802.3at
The HS 2G4FEP is 1000M POE switch with 1 1000M fiber port and 4 10/100Mbps RJ45
POE ports. We also offer all ports gigabit for higher speed demand networks.
It’s suitable for the network which requires cascading switches as well as
power supply for 1-4 ending devices.

POE switches offers power supply through Ethernet cables on the basis of normal
non-POE functions. There are 2 kinds of POE switches, standard POE and non-
standard POE. Non-standard POE switches get outdated with the development of
technology. There is big risk of burning as it gives power as soon as ending
equipment is connected to it. For standard POE, there is automatic detection
before the power supply. It will detect if the ending equipment can bear the
power supply or not; it can also detect if power supply is really needed. In
this way, there will not risk of buring from compulsive powering.

Most of the current IP cemeras support to be powered with POE switches. So
there is no need to arrange extra wiring as normal non-POE switches and it’s
more reliable for the IP cameras as there is smart detection before power
supply. Without the extra labor work and cost on the cabling, POE switches also
help to save lots of money and time. If any changes need to be made for the
locations of the IP cameras, it’s also easier for maintance and upgrade as
there is no need to worry about the power socket.

As a 48V standard POE switch, HS 2G4FEP is a device which can help you to
improve your current network greatly. If you need to transmit network over long
distance and there is need for power supply on 1-4 ending devices, it would be
the perfect solution for you. 2 fiber and 4/8 POE port models are best selling
models for small size LAN networks. Welcome to test!

The HS-2G4FEP is a POE switch designed for network monitoring. It has four
10/100Mbps Ethernet ports and two 1.25Gbps fiber ports. It is designed with
imported Marvell chip to achieve lower power consumption and high stability. It
extends the transmission distance of a network from 100m to120km via copper
cables. There are also many other advantages such as isolation protection, good
data security, working stability and easy maintenance.

Shenzhen Huashi Network Technology Co. Ltd. was established in June 2011, which
is an original manufacturer of networking and fiber products. We provide poe
switch 1000 mbps, switch 1000mbps, 6 port poe switch, gigabit media converter,
POE Switch, Ethernet Extender and etc. Want to know more? Please contact us.

Minimum Order: 500 pieces
