1-port 10/100M Base-T(X)+1-port 100M FX

MC101 Ethernet Media Converter, also known as Fiber Optic Media Converter,
is a networking device that transparently converts data between short-
distance electrical signals and long-distance fiber optic signals, plug-and-
play, no configuration required, can be operated at wide temperatures range
from 0 to 50°C.

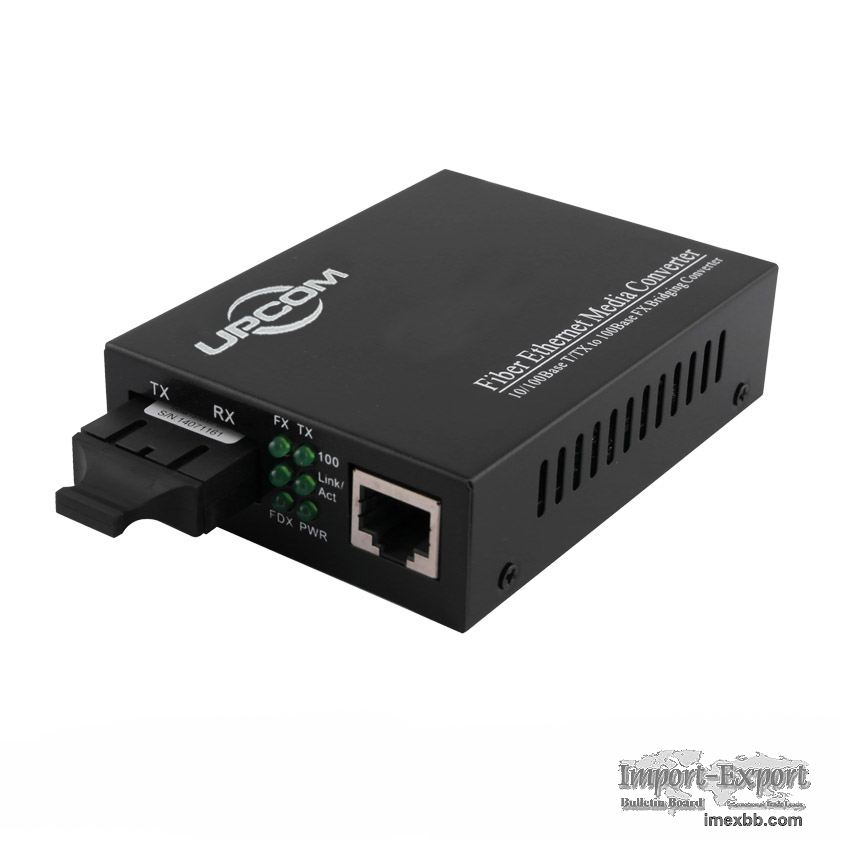

UPCOM MC101 Fiber Media Converter support 1-port 10/100M Base-T(X)+1-port
100M FX, adopts durable metal housing, external DC5V, is a flexible and
cost-effective solution that can extend transmission distances to 120km
through a single-mode fiber, protecting data from noise and electromagnetic
interference.

MC101 is ultra-small in size, with shielded RJ45 Ethernet jack, optional
SC/ST/FC fiber-optic connector. Built-in auto-sensing function supports full
or half-duplex Ethernet operation, widely used in MAN (metropolitan area
network), security monitoring, intelligent transportation and other
applications.

MC101 supports stand-alone installation, and can also be inserted into a 2U,
19",14 slots Rack-mount Chassis, with built-in LED indicators for easy
diagnosing and monitoring status. including single-mode, multi-mode
transmission modes, multi-mode can transmit 2km, single-mode can reach up to
120km.

Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX;

Support MDI/MDI-X auto negotiation, 10M/100M adaptive；

Support flow control;

Supports full /half duplex, Point-to-point transparent transmission;

Support non-blocking wire-speed forwarding;

Plug-and-play, no configuration is required;

LED indicators for easy diagnosis and monitoring work status;

Support External power 5VDC input;

Support 0-50°C wide operating temperature range;

Low power consumption, No fan, Metal casing;

Support stand-alone or wall Installation;

Can insert to 2U 19", 14 slots Rackmount chassis;

FCC Class A & CE approved, RoHS compliance;

Warranty:3years

Minimum Order: 1 pieces
