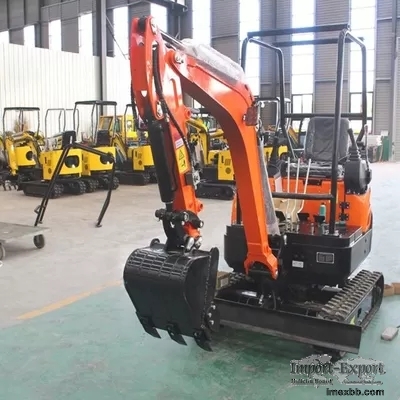

0.8 Ton Crawler Flexible Operation Mini Digger Excavator

Product Description
Chinese 0.8t Crawler Mini Excavator Small Digger Price for Sale



Quick Detail:

1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified gasoline
/Kubota engine for your choices;



2. Adopt famous hydraulic Shut-off valve;



3. The boom and the bulldozer oil cylinder are equipped with high-strength
cast steel protective plates;



4. Dig-to-blade and dozer float features are easy to clean up;



Specifications:

Preformance Parameter
Rated Power 7kw-7.5kw
Bucket Capacity 0.025m³
Bucket Width 300mm
Engine Model Koop192f
Optional Engine Briggs&Stratton
Opeating Weight 800kg
Pump Form Single Gear Pump
Set Working Pressure 14Mpa
Swing Speed 12rpm
Travel Speed 2.2Km/h
Gradeability 30°
Ground Pressure 19Kpa
Max. Digging Force 7.5Kn
Dimensions
Total Width 720-780mm
Total Height 1300mm
Total Length 2430mm
Min.Ground Clearance 80mm
Track Ground Length 1140mm
Track Width 150mm
Working Range
Max.Digging Distance 2450mm
Max.Digging Depth 1200mm
Max.Digging Height 2350mm
Max.Dumping Height 1600mm
Min.Swing Radius 1100mm
Max.upgrade Height of Bulldozer Blade 120mm
Max.Digging Depth of Bulldozer Blade 200mm


Notices:

1. Inspection should be carried out before operation to confirm that there
are no obstacles and other personnel within the moving range of the boom and
bucket, and the operation can be started only after sounding the alarm.



2. When digging grooves, the slopes and soil should be placed according to
the requirements of safety technical disclosure, and it is strictly
forbidden to dig under the fuselage.



3. When loading the truck, it should be carried out after the transport
vehicle is stopped, the bucket should be lowered as much as possible, and
the vehicle should not be smashed. It is strictly forbidden for the bucket
to go over the top of the cab of the car.



4. When walking, the arm should be parallel to the crawler, and the slewing
mechanism should be braked. The bucket should be 1m away from the ground.
The walking gradient shall not exceed the maximum allowable gradient of the
machine, drive downhill at a slow speed, and it is strictly forbidden to
slide in neutral gear. Turning should not be too hasty, and padding should
be reinforced when passing through soft ground.


5. Before the operator can leave the cab, the bucket must be dropped and the
engine turned off.



6. Do not lift materials with buckets.



Applications:

The main uses of the excavator: in road construction projects to excavate
trenches, in construction projects to excavate the foundation, in water
conservancy projects to excavate ditches, canals and dredging rivers, in
quarries, open-pit mining and other projects for the stripping and
excavation of ore, etc.; in addition to gravel, coal and other loose
materials can be loaded.


Operation: After replacing the working device, it can also be used for
lifting, pouring, installation, piling, ramming and pile pulling.
