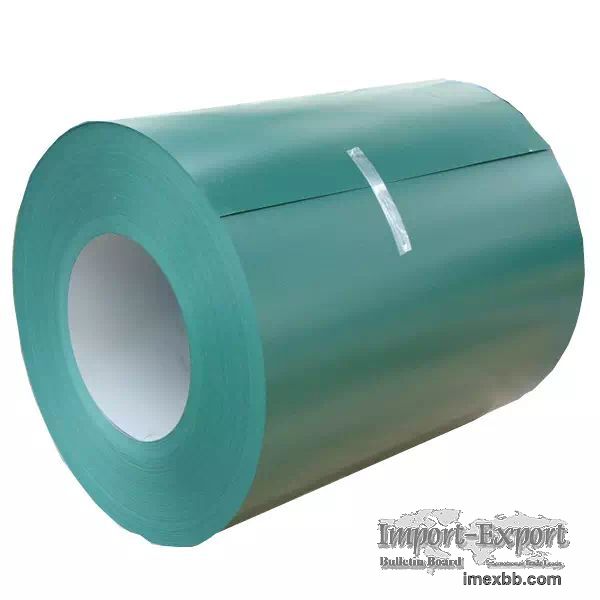

0.5mm Pre Painted Galvanized Coils AZ150 PPGL PPGI Steel Coils

Prepainted galvanized steel coil is based on hot galvanized plate, hot aluminum
zinc plate, galvanized plate and so on, after surface pretreatment, on the
surface coated with a layer or several layers of organic coating.


PPGI COIL coating type:
Polyester (PE)
Good adhesion, rich color, wide range in formability and outdoor durability,
medium chemical resistance, low cost.
Silicon-modified polyester
That is, (SMP), the film has good hardness, wear resistance and heat
resistance, as well as good external durability and resistance to powder, gloss
retention, general flexibility and medium cost.
High durability polyester
(HDP), excellent color retention and uv resistance, excellent outdoor
durability and resistance to powder, good adhesion of paint film, rich color,
excellent cost performance.
Polyvinylidene fluoride
Namely (PVDF), excellent color retention and uv resistance, excellent outdoor
durability and resistance to powder, excellent solvent resistance, good
molding, dirty resistance, limited color, high cost.

Type of coating structure
2/1: Coat upper surface twice, coat lower surface once, bake twice.
2/1M: coat upper and lower surfaces twice, bake once.
2/2: Coat the upper and lower surfaces twice, bake twice.
V Different coating structure uses:
2/1: Single layer back paint has poor corrosion resistance, scratch resistance,
but good adhesion, main
To be applied to the sandwich board;
2/1M: The back paint has good corrosion resistance, scratch resistance and
processing molding, and has good adhesion
Suitable for single - layer laminated plate and sandwich plate.
2/2: Double backside paint has good corrosion resistance, scratch resistance
and processing molding, most of which are used for single
Laminated plate, but its poor adhesion, not suitable for sandwich plate.

------------

Standard:AiSi, ASTM, bs, DIN, GB, JIS

Grade Steel:DX51D+Z,TSGCC, TS280GD,TDC51D+AZ,PVDF,TDC51D+AZUF

Techniqu , e:Cold Rolled

Application:Structural,Roofing,Comme , rcial use,Household Appliance,Industry

Special Use:High-strength Steel Plate

Width:900-1500mm

Length:in coil

Tolerance:±3‰

Processing Service: Bending, Welding, Decoiling, Cutting, Punching

Color:Customers Samples Color

MOQ:10 Tons

Delivery time:15 - To be negotiated

Packing:Standard export packing or as customer's requirements

Payment term:L/C T/T (30% Deposit)

Advantage:High Corrosion Resistance

Supply Ability:50000 Ton/Tons per Month Stainless Steel Coil

Zinc Coating:30-275g/m2

Port:Qingdao,Tianjin,Sha , nghai or as required



whatsApp:+8613964085002
webfrom:https://www.zhishangsteel.com

Minimum Order: 1 tons
