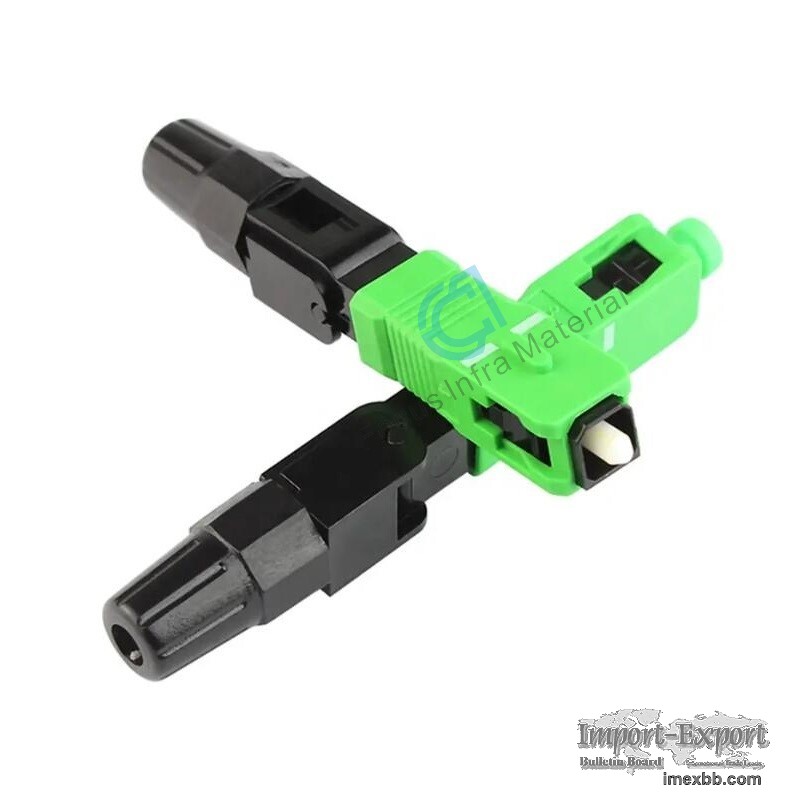

0.3dB Fiber Optic Fast Connectors SC APC Field Assembly Optical Connector

Embed cable fast connector Singlemode Optic sc apc green for Field Assemble
ftth fiber to the home (Field Assembly Connector or Field terminated fiber
connector, quickly assembly Fiber connector) is a revolutionary field
installable optical fiber connector that requires no epoxy and no polishing.
The unique design of the patented mechanical splice body incorporates a
factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this
onsite assembly optical connector, it is possible to improve the flexibility
of optical wiring design as well as reducing the time required for fiber
termination. The Fast connector series are already a popular solution for
optical wiring inside buildings and floors for LAN & CCTV applications and
FTTH.
High Quality IR 0.3dB FTTH Fiber Optic SC Fast Connector takes use of the
latest generation of Rapid Ready-Terminal technology. After terminating,
both the optical and mechanical performances reach the standard for
patchcord and meet the demand for making patch cord on site by mechanical
splicing.

Application: FTTx Rebuilding the wiring in optical equipments rooms
Following types of connector is available: SC/PC,FC/PC

Feature:

1. Fast and easy termination of rectangular section FTTH drop cable
2. No polishing or adhesives required
3. Terminate cable to exact required length
4. Can be re-opened up to 5 times
5. Simple to assemble with our guide rail tool
6. Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
7. Easy to operate, fast to assemble, high success rate, long time of using,
easy maintenance.

Product name Fiber Optic Fast Connector SC/APC
Product size 55mm*9mm
Shell material Flame retardant(PEI)
Insertion Loss ≤0.3dB
Return Loss of pigtail ≥55dB
Type Singlemode
Suit cable diameter 0.9/2.0/3.0mm
Application scope FTTH FTTB FTTX Network
Applicable temperature -40℃~+85℃
tensile strength 30N

Minimum Order: 500 pieces
